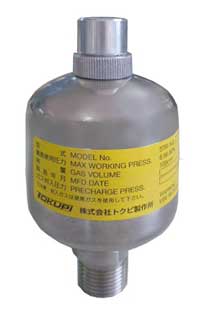

This Accumulator is a compact-sized, light-weight and superior to corrosion-resistance. The Accumulator can be installed in a small space, provided with stable performance, through which versatile machine designs can be afforded.
  Features
  This Tokupi rater is featured by compact-size and light-weight. The accumulator is manufactured by stainless steel.
The system can suppress the pulse phenomenon by accumulating fluid pressure at piping mechanism temporarily into the accumulator,
As a result, smooth drainage and water feeding activities can be supported successfully.
The Tokupi rater is superior to pressure resistance, as well as compact-size and light-weight. This means the piping arrangement can be made freely.
The materials of the accumulator are represented by austenite-stainless-steel SUS316L, which have highly corrosion resistant and highly chemicals resistant properties.

  • This is a small-size and light-weight. It can be used in a small space.
  • The body is manufactured by using stainless steel, through which it is superior to chemical-resistance and corrosion-resistance.
  • Exclusively designed processing method can exert stable performances.
  Specifications

Type
STR-100
Maximum working pressure
6.86 MPa
Capacity
100Cubic centimeter
Prada material quality
Nitrile rubber
Outside dimensions
φ61 × 238mm
Installing bore
Rc1/2
Body material
SUS316L
Mass weight
0.48 kg
アキュームレーター
  Major uses

  • Pulsation absorption
  • Leakage compensation
  • Shock absorption
  • Shock absorber
  • Energy accumulation
  • Balancing action
  • Thermal expansion guarantee
  Catalog Download
  We offer the catalog data in a PDF file.
  Catalog Download
